Series universal displacement sensor / UR-812
Features
- Large core hole clearance;
- Resistant to impact and vibration;
- Electromagnetic/electrostatic shielding;
- Provide high temperature 220 ℃ model;
- High reliability;
- Stainless steel casing;
- Imperial or metric thread core;
- Many options and accessories;
Applications
- Process control;
- Factory automation;
- Material testing;
- Metrology;
- Applications with large deviations;
- General industry;
Overview
UR series universal LVDTs provide optimal performance for most applications. The large 1.6mm radial clearance from the bore to the core provides ample installation misalignment, reducing application costs. These versatile, highly reliable LVDTs feature high output voltage and a wide operating frequency range for trouble-free, precise position measurement. High-temperature (200ºC) operation and light radiation-resistant types are also available and are compatible with measurement professional LVDT signal conditioners.
Technical Parameters
- Input voltage: 3Vrms (nominal)
- Input frequency: 400Hz to 10KHz
- Linearity: <±0.15% of full range typical
- Expanded operating range: 1.5X linear range
- Null voltage: 0.5% of full range
- Hysteresis: <0.01% of typical full range
- Repeatability: <0.01% of typical full range
- Operating temperature: -55℃ to 135℃
- Thermal coefficient: <-0.02%/℃ full range
- Humidity: 90% RH, 240 hours
- Shock: 1000g, 11ms
- Vibration: 20g to 2KHz
- Housing: Corrosion-resistant stainless steel
- Leads: #28AWG Teflon insulated

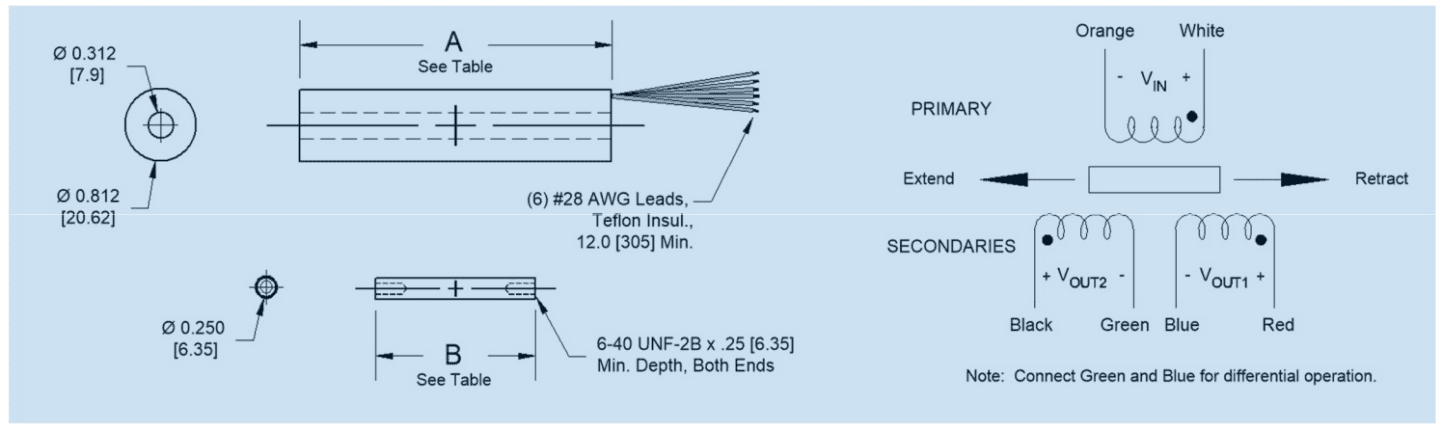

External Wiring
UR-812 series universal displacement sensor
