Series ultrasonic displacement sensor / UPWC-BX60
Features
- Analog output 4~20 mA;
- Small blind zone;
- Configurable;
- Fixed interference suppression;
- Temperature compensation;
- Synchronization function;
- Selectable operating modes;
Applications
- Industrial automation;
- Intelligent transportation;
- Building structure monitoring;
- Drone navigation;
- Liquid level control;
Overview
The UPWC-BX60 sensor housing is made of high-quality materials, ensuring stable performance over a wide temperature range and effective resistance to external interference. As a precision electronic measurement tool, it uses ultrasonic principles to achieve non-contact distance measurement, providing accurate measurement data.
Technical Parameters
- Detection range: 350~6000 mm
- Standard target plate: 100×100 mm
- Transducer frequency: approx. 65 kHz
- Response delay: min. 285 ms (factory setting 850 ms)
- Operating voltage: 10~30 VDC, ripple 10 %pp
- No-load current: ≤ 60 mA
- Synchronization: Bidirectional 0 level: －Us~+1 V; 1 level: +4 V~+UB
- Input impedance: >12 kOhm
- Sync pulse: 2100 μS
- Sync pulse period: 22 ms
- Normal operating mode: ≤ 13 Hz
- Multiplex mode: ≤13/n Hz, n = number of sensors
- Output type: 1 analog output 4~20 mA
- Default settings: Measuring limits A1: 240 mm, A2: 4000 mm, wide sound cone
- Accuracy: 0.7 mm
- Characteristic curve deviation: ±1% of full scale
- Repeatability: ±0.1% of full scale
- Load impedance: 0~300 ohms
- Temperature drift: ±1% of full scale
- Protection class: IP54
- Housing: Brass nickel-plated, resin, hollow glass sphere mixture, polyurethane foam, PBT
- Weight: 180 g

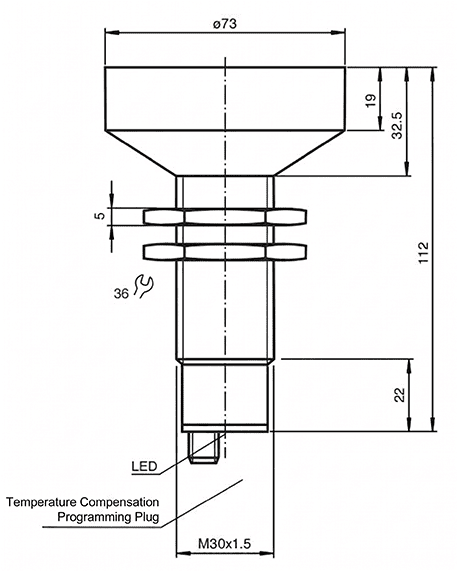

External Wiring
UPWC-BX60 ultrasonic displacement sensor
