Series valve LVDT displacement sensor / UPSD-360

Features

Specifically designed for multi-way solenoid valves;
Split connecting rod and core assembly for easy installation;
Detachable coil design for easy maintenance;
Integrally machined housing and pressure tube, impact and vibration resistant;
Magnetic shielding design for strong anti-interference capability;
Built-in DC conversion module;
Provides a variety of standard analog signal outputs (current/voltage);

Applications

Multi-way valves;
Excavators;
Loaders;
Construction machinery;
Military equipment;
Centrally controlled hydraulic systems;

Series valve LVDT displacement sensor / UPSD-360

Overview

The UPSD-360 series valve LVDT displacement sensor is specifically designed for multi-way solenoid valves. It features a split connecting rod and core assembly for easy installation and a built-in DC conversion module for direct output of standard analog signals.

Technical Parameters

Range: 0-8mm/0-16mm/0~24mm/0-30mm/0-50mm (customizable)
Structure: Split type
Wiring: M12 waterproof connector
Power supply: 13~28VDC (±5V/±10V output models require ±15V supply)
Output signal: 0-5V/0-10V/2-10V/4-20mA/±5V/±10V
Frequency response: 400Hz
Linearity: <0.6%
Repeatability: 0.1%
Temperature coefficient: <0.015%/°C
Operating temperature: -20℃~+85℃
Shock resistance: 1000g @ 11ms
Vibration resistance: 20g @ 2000Hz
Operating pressure: 42MPa
Protection class: IP67

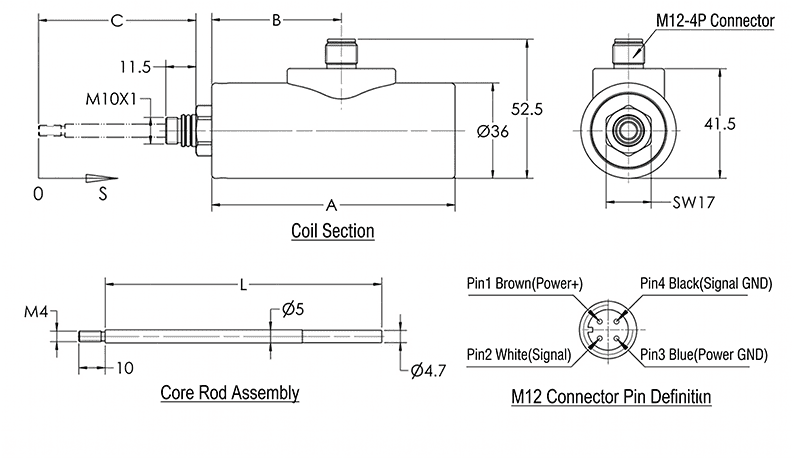

External Wiring
