Series valve LVDT displacement sensor / UPSD-270

Features

Specially designed for proportional valves/servo valves;
Split type and connecting rod for easy installation;
All stainless steel shell;
Integrated processing of pressure pipes with no risk of leakage;
ED ring sealing structure;
Built in shielding layer, the product has strong anti-interference ability;
Simple structure and high cost-effectiveness;

Applications

Proportional valve;
servo valve;
Multi-way valve;
die casting machine;
injection molding machine;
CNC machine tool;
construction machinery;
Hydraulic system;

Series valve LVDT displacement sensor / UPSD-270

Overview

The UPSD-270 series valve LVDT displacement sensor is designed specifically for proportional/servo valves, using a split type connecting rod iron core assembly for easy installation; The all stainless steel shell is combined with the integral processing pressure pipe and sealed with an ED ring, with a simple and reliable structure; Built in shielding layer, strong anti-interference ability, can directly output multiple standard analog signals, high cost-effectiveness.

Technical Parameters

Range: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm (customizable)
Structural form: Split type
Outgoing method: M12 connector
Working power supply: 13-28 DC (± 5V/± 10V output requires ± 15V power supply)
Output signal: 0-5V/0-10V/2-10V/4-20mA/± 10V/± 5V
Response frequency: 1000Hz
Linear accuracy:<0.6%
Repetition accuracy: 0.1%
Temperature coefficient:<0.015/degree
Working temperature: -20 ℃~+85 ℃
Resistant to impact: 1000g@11 millisecond
Vibration allowance: 20g@2000Hz
Work pressure: 50MPa

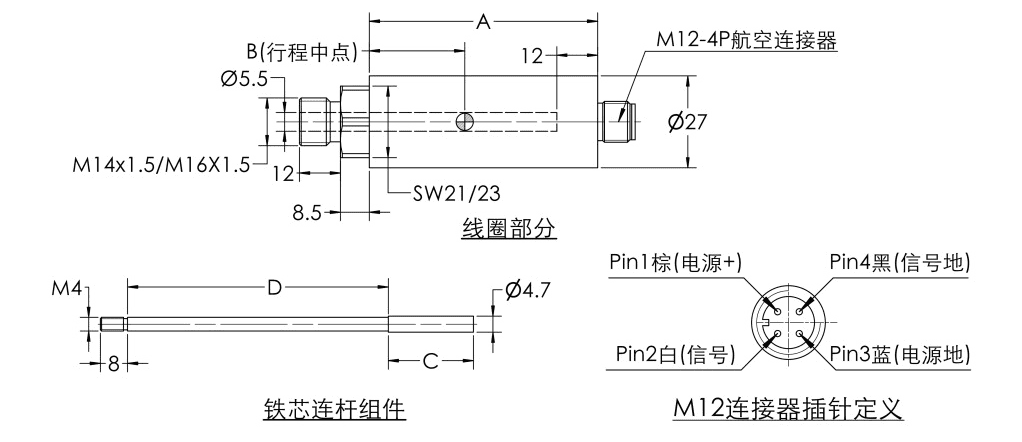

External Wiring
