Series universal LVDT displacement sensor / UPR-190
Features
- General-purpose linear displacement sensor;
- Split core, easy installation;
- Fully sealed metal housing, strong impact and vibration resistance;
- Double shielding layer, anti-electromagnetic and electrostatic interference;
- Reliable operation in harsh environments such as high temperature, high humidity, and dust;
- Broadband excitation, high sensitivity, high reliability;
- Innovative winding design, shorter product length;
Applications
- Steam turbines;
- Hydraulic cylinders;
- Hydraulic presses;
- Machine tools;
- Material testing machines;
- Metallurgical machinery;
- Mining machinery;
Overview
UPR-190 series universal LVDT displacement sensor features a split structure for easy installation. The fully sealed metal housing provides impact and vibration resistance. The double shielding layer offers anti-interference capability, ensuring reliable operation in harsh environments.
Technical Parameters
- Range (mm): 20~1000
- Structure: Split type
- Wiring: Teflon wire or shielded cable
- Power supply: 3Vrms (1~7Vrms optional)
- Excitation frequency: 2.5KHz (400~10KHz optional)
- Null voltage: <20mV
- Linearity: Precision type <0.3%, standard type: <0.6%
- Repeatability: 0.1%
- Temperature coefficient: <0.015%/°C
- Operating temperature: Standard: -50℃~+155℃, High temp: -50℃~+240℃
- Shock resistance: 1000g @ 11ms
- Vibration resistance: 20g @ 2000Hz

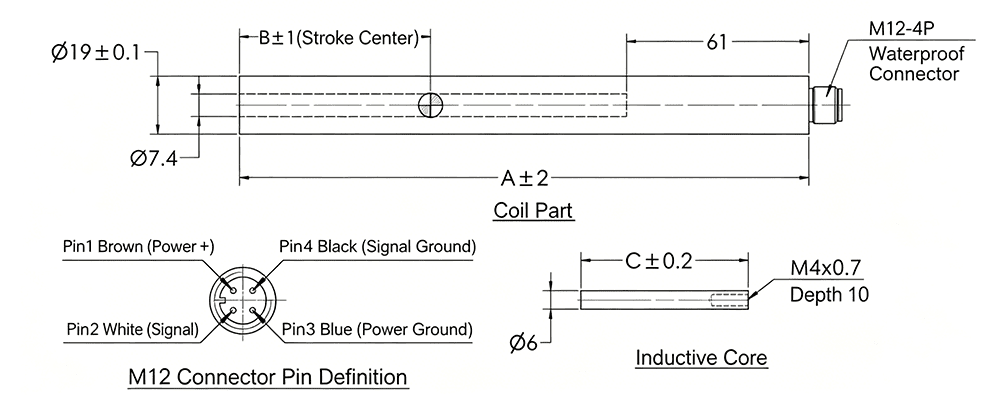

External Wiring
UPR-190 series universal LVDT displacement sensor
