UPG-120 series rebound displacement sensor
Features
- Precision measuring head, accuracy up to 1 micron;
- Precision linear bearing rebound mechanism, smooth rebound without jamming;
- Precision honed measuring shaft and bearing, excellent repeatability;
- Hardened measuring shaft for longer service life;
- Built-in shielding layer for protection against electromagnetic interference;
- Polyurethane sheathed cable for long-term use in drag chains;
- Standard M2.5 probe for easy replacement;
Applications
- Precision dimensional measurement;
- Online component inspection;
- High repeatability measurement;
- Deformation monitoring of pressure vessels;
Overview
The UPG-120 series rebound displacement sensor uses a precision measuring head and high-precision linear bearings, with a smooth rebound mechanism without jamming. The built-in shielding layer effectively protects against electromagnetic interference. Precision honed measuring shaft and bearing provide excellent repeatability, while the hardened measuring shaft extends service life. Suitable for precision dimensional measurement, online component inspection, and deformation monitoring of pressure vessels.
Technical Parameters
- Range: 10~50mm (customizable)
- Structure: Spring return
- Wiring: 6-core Teflon shielded cable or leads
- Power supply: 3Vrms (1~7Vrms optional)
- Excitation frequency: 2.5KHz (400~10KHz optional)
- Null voltage: <20mV
- Linearity: <0.25%
- Repeatability: 0.1%
- Temperature coefficient: <0.01%/°C
- Operating temperature: -20℃~+85℃
- Shock resistance: 1000g @ 11ms
- Vibration resistance: 20g @ 2000Hz
- Product life: ≥10 million cycles
- Spring force: 300g (customizable)
- Mechanical response: 10Hz~200Hz@20℃

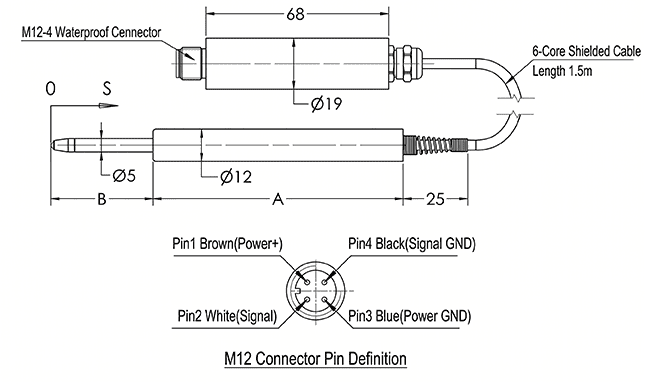

External Wiring
UPG-120 series rebound displacement sensor
