Series miniature displacement sensor / UN-188
Features
- Rugged 4.77mm housing;
- Linearity ±0.25% of full range typical;
- Shock and vibration resistant;
- Wide operating temperature range -55℃ to 135℃;
Applications
- Robotics control;
- Medical equipment;
- Drones and unmanned aerial vehicles (UAVs);
- Miniature solenoid valves;
- Laboratory equipment;
- Hydraulics;
Overview
The UN-188 series of ultra-small AC LVDTs provide high-quality position measurement in space-constrained locations. It features a 4.77 mm diameter housing, offers a variety of measurement ranges, and provides customization options. The ultra-small size brings all the advantages of LVDT measurement technology, such as infinite resolution, excellent repeatability and hysteresis, and operation over wide temperature and pressure ranges, for applications with tight space constraints.
Technical Parameters
- Input voltage: 1Vrms (nominal)
- Input frequency: 2.5 kHz to 10 kHz
- Linearity: <±0.25% of full range typical
- Expanded operating range: 1.5X linear range
- Hysteresis: <0.01% of typical full range
- Repeatability: <0.01% of typical full range
- Housing: Corrosion-resistant nickel-iron alloy
- Core: High permeability nickel-iron alloy
- Magnet wire: Film insulated copper
- Leads: #32AWG Teflon insulated
- Operating temperature: -55℃ to 135℃
- Thermal coefficient: <-0.02%/℃ full range
- Shock: 1000g, 11ms
- Vibration: 20g to 2KHz

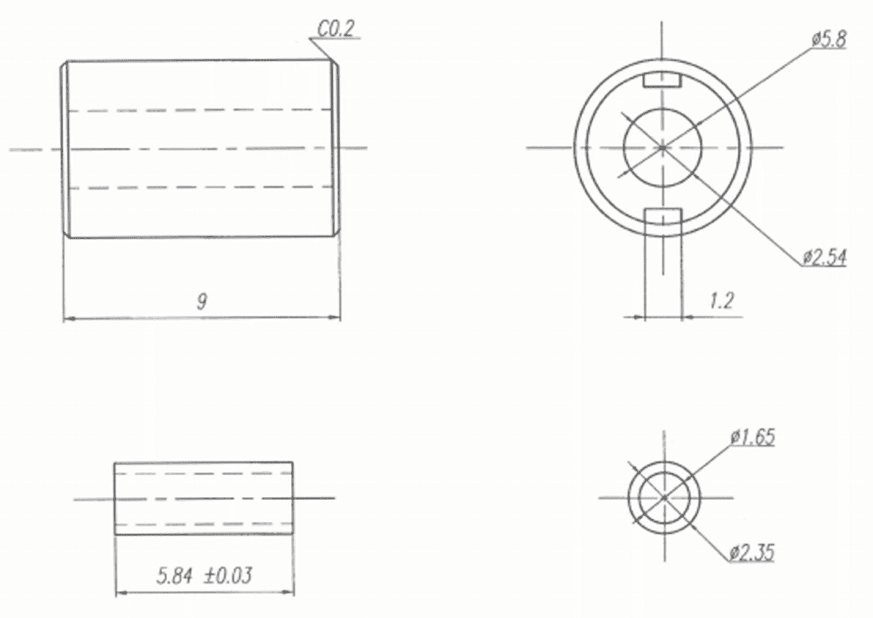

External Wiring
UN-188 series miniature displacement sensor
