Series pen displacement sensor / UMBB-315

Features
  • Diameters available in 8mm and 9.5mm;
  • Very reliable, over 100 million cycles;
  • Measuring ranges ±1.0mm, ±2.5mm and ±5mm;
  • Linearity <5% of full range;
  • Repeatability 0.15μm;
  • Threaded sleeve and locknut available (MBT-375);
Applications
  • Dimensional measurement;
  • Metal component measurement;
  • Roundness measurement;
  • Automotive testing;
Series pen displacement sensor / UMBB-315
Series pen displacement sensor / UMBB-315


Overview
The UMBB series measuring probe is a spring-loaded AC LVDT with good linearity, high accuracy, and infinite resolution. The structure consists of a stainless steel probe assembly and an 8mm diameter housing with an IP-65 protection rating. It is designed for a wide range of position and dimensional measurement applications. The UMBB series features high-precision linear ball bearings for smooth probe movement without static friction and excellent repeatability.
Technical Parameters
  • Housing: Stainless steel, optional 3/8-40, UNS2A external thread (MBT series)
  • Core: High permeability nickel-iron alloy
  • Magnet wire: Film insulated copper
  • Connector: Cable with flying leads
  • Probe: Tungsten carbide

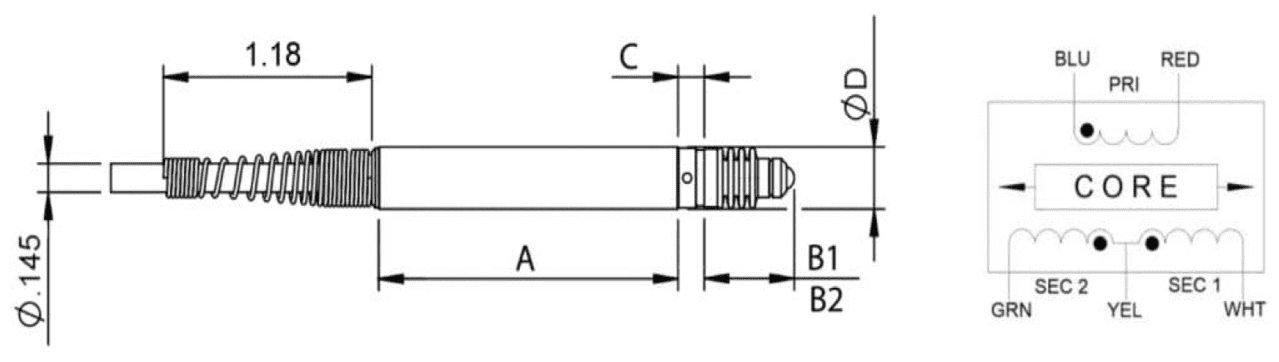

External Wiring

UMBB-315 series pen displacement sensor
