Series pen displacement sensor (digital output) / UMBB-080

Features
  • Ultra-precision measuring head, accuracy up to 0.5 microns;
  • Ultra-precision linear bearing rebound mechanism, smooth rebound without jamming;
  • Three-layer shielded LVDT for effective protection against electromagnetic interference;
  • Polyurethane sheathed cable for long-term use in drag chains;
  • Standard M2.5 probe for easy replacement;
  • High-strength aluminum alloy housing, durable;
  • Rail clip structure for easy installation;
Applications
  • Precision dimensional measurement;
  • Online component inspection;
  • High repeatability measurement;
  • Deformation monitoring of pressure vessels;
Series pen displacement sensor (digital output) / UMBB-080
Series pen displacement sensor (digital output) / UMBB-080


Overview
The UMBB-080 series pen displacement sensor (digital output) uses an ultra-precision measuring head and high-precision linear bearings, providing digital signal output for easy integration with PLCs or computer systems.
Technical Parameters
  • Range: 1mm, 2mm, 5mm, 10mm, 15mm
  • Structure: Spring return
  • Wiring: DB9 female connector
  • Power supply: 13~28V DC
  • Output signal: RS485
  • Mechanical response: 10Hz~200Hz@20℃
  • Linearity: <0.25%
  • Repeatability: 0.1%
  • Temperature coefficient: <0.01%/°C
  • Operating temperature: -20℃~+85℃
  • Shock resistance: 1000g @ 11ms
  • Vibration resistance: 20g @ 2000Hz
  • Product life: no less than 10 million cycles
  • Probe force: 70g±20% at mid-stroke
  • Protection class: IP65

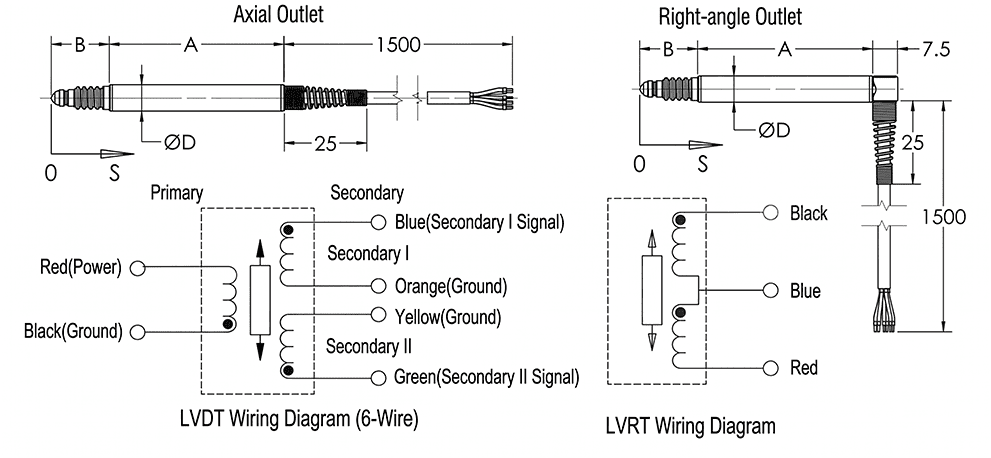

External Wiring

UMBB-080 series pen displacement sensor (digital output)
