Series high temperature and high pressure displacement sensor / UM-375
Features
- Featuring high sensitivity, high resolution, and excellent linearity;
- Linearity ± 0.15% of typical values across the entire range;
- Durable 9.53mm stainless steel casing (micro, ultra small);
- The measurement range is ± 0.63mm to ± 50mm, with ultra-high precision;
- Resistance to impact and vibration;
- Working temperature range: -55 ℃ to 200 ℃ (standard) High temperature resistance can be customized;
- Provide standard and customized models;
- Can choose between imperial or metric thread cores;
Applications
- Factory Automation;
- Medical device;
- Valve position monitoring;
- Material Testing;
- Dimensional measurement;
Overview
This series of communication LVDT displacement sensors is designed for applications that require high reliability and operate in harsh environments required by industrial equipment. It consists of a coil assembly that is housed in a 9.53mm diameter housing with a separate movable core. The dimensions of this series range from ± 0.63mm to ± 50mm.
Technical Parameters
- Range: 0.2mm/1mm/2mm/5mm/12mm (optional)
- Input AC voltage: 3Vrms (400Hz to 10KHz)
- Linearity:<± 0.15%/0.25%/0.5% Full range typical values
- Expanded scope of work: 1.5 X-ray range
- Zero voltage: 0.5% full range
- Lag:<0.01% of typical full range
- Repeatability:<0.01% of typical full range
- Working temperature: -55 ℃ to 135 ℃
- Thermal coefficient:<-0.02%/℃ of the full range
- Impact: 1000g, 11ms
- Vibration: 20g to 2KHz

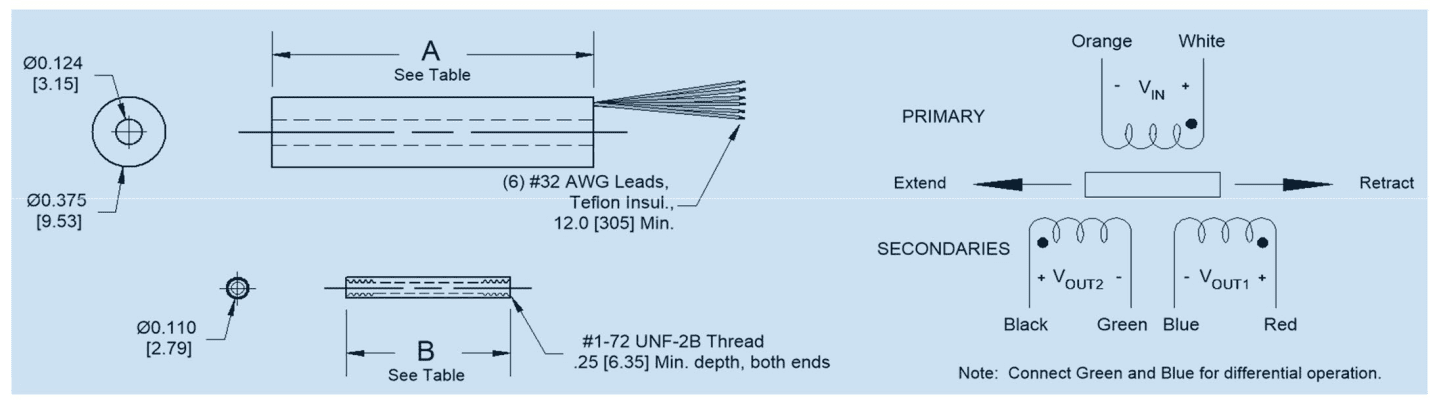

External Wiring
UM-375 series high temperature and high pressure displacement sensor
