Series universal LVDT displacement sensor / UHP-190
Features
- Fully sealed structure, impact and vibration resistant, pressure resistant up to 50MPa;
- All stainless steel structure, strong corrosion resistance;
- Split core connecting rod, easy to install;
- Comes with M22X1.5 mounting thread for easy installation;
- ED sealing ring for good sealing effect;
- Double shielding layer for strong anti-electromagnetic interference capability;
- Innovative winding design for shorter product length;
Applications
- Hydraulic actuators;
- Hydraulic containers;
- Solenoid valves;
- Hydraulic cylinders;
Overview
The UHP-190 series sensor is an LVDT displacement sensor specifically designed for hydraulic applications. It features a fully sealed stainless steel structure, offering resistance to impact and vibration, and can withstand pressures up to 50MPa.
Technical Parameters
- Range (mm): 10~1000
- Structure: Split type
- Wiring: M12 connector
- Power supply: 13~28V DC (±5V/±10V output models require ±15V supply)
- Output signal: 0-5V/0-10V/2-10V/4-20mA/±10V//±5V
- Frequency response: 1000Hz
- Linearity: <0.3%
- Repeatability: 0.1%
- Temperature coefficient: <0.015%/°C
- Operating temperature: -20℃~+85℃
- Operating pressure: 50MPa
- Shock resistance: 1000g @ 11ms
- Vibration resistance: 20g @ 2000Hz

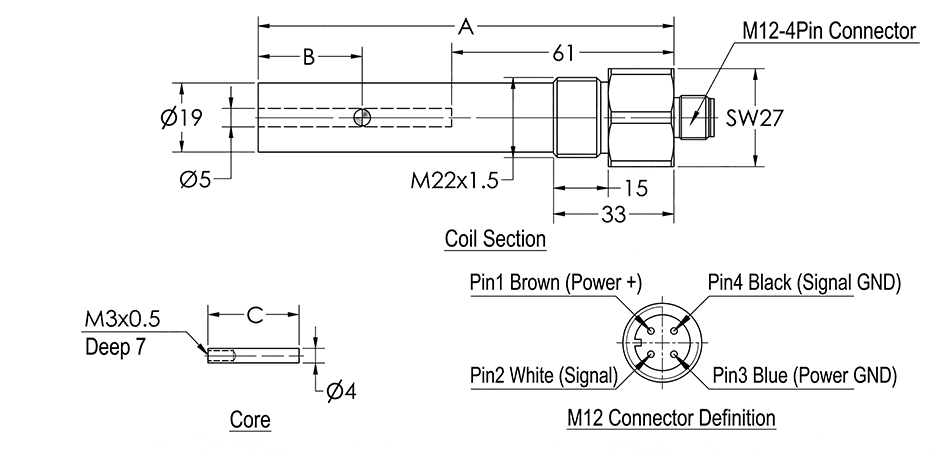

External Wiring
UHP-190 series universal LVDT displacement sensor
