UGTU700 series fiber optic gyroscope IMU

Features

Ultra-compact: 145mm×121.5mm×125mm;
Lightweight: 3kg;
Low power: 18W;
Medium precision: 0.05~0.2°/h;
Wide measurement range: ±1000°/s;
High reliability, long life;

Applications

Tactical missile guidance;
Antenna system stabilization;
Attitude/azimuth reference system;

UGTU700 series fiber optic gyroscope IMU

Overview

UGTU700 series fiber optic gyroscope IMU features ultra-compact design (145mm×121.5mm×125mm), lightweight (3kg), low power (18W), medium to high precision (0.05~0.2°/h), wide measurement range (±1000°/s), high reliability and long life, suitable for tactical missile guidance, antenna system stabilization, attitude/azimuth reference system and other applications.

Technical Parameters

Gyro measurement range: ±1000°/s
Gyro bias stability: 0.05°/h (Type A) / 0.08°/h (Type B) / 0.1°/h (Type C) / 0.2°/h (Type D)
Gyro bias repeatability: 0.05°/h (Type A) / 0.08°/h (Type B) / 0.1°/h (Type C) / 0.2°/h (Type D)
Gyro random walk coefficient: ≤0.005°/√h (Type A) / ≤0.008°/√h (Type B) / ≤0.01°/√h (Type C) / ≤0.02°/√h (Type D)
Gyro scale factor nonlinearity: ≤50ppm (Type A) / ≤60ppm (Type B) / ≤60ppm (Type C) / ≤80ppm (Type D)
Accelerometer measurement range: ±10g
Accelerometer bias stability: 0.05mg (Type A/B) / 0.07mg (Type C/D)
Accelerometer bias repeatability: 0.05mg (Type A/B) / 0.07mg (Type C/D)
Accelerometer scale factor repeatability: ≤100ppm (Type A) / ≤200ppm (Type B) / ≤300ppm (Type C/D)
Operating temperature: -40～+65℃
Storage temperature: -45～+70℃
Vibration: 20～2000,0.06Hz,g²/Hz
Shock: 30,11g,ms
Input voltage: +9～+36Vdc
Power consumption: 18W
Data output format: RS-422
Dimensions: ≤145×121.5×125mm
Weight: 3kg
Connector: Y11P-1210ZK10

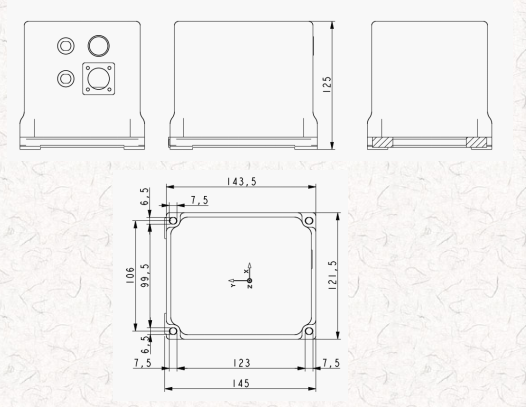

External Wiring
