UGTU500 series fiber optic gyroscope IMU

Features

Ultra-compact: 90mm×90mm×90mm;
Lightweight: 1.0kg;
Low power: 12W;
Medium precision: 0.2~1.0°/h;
Wide measurement range: ±1000°/s;
High reliability, long life;

Applications

Tactical missile guidance;
Antenna system stabilization;
Attitude/azimuth reference system;

UGTU500 series fiber optic gyroscope IMU

Overview

UGTU500 series fiber optic gyroscope IMU features ultra-compact design (90mm×90mm×90mm), lightweight (1.0kg), low power (12W), medium precision (0.2~1.0°/h), wide measurement range (±1000°/s), high reliability and long life, suitable for tactical missile guidance, antenna system stabilization, attitude/azimuth reference system and other applications.

Technical Parameters

Gyro measurement range: ±1000°/s
Gyro bias stability: ≤0.2°/h (Type A) / ≤0.35°/h (Type B) / ≤0.5°/h (Type C) / ≤1.0°/h (Type D)
Gyro bias repeatability: ≤0.2°/h (Type A) / ≤0.35°/h (Type B) / ≤0.5°/h (Type C) / ≤1.0°/h (Type D)
Gyro random walk coefficient: ≤0.01°/√h (Type A) / ≤0.035°/√h (Type B) / ≤0.05°/√h (Type C) / ≤0.1°/√h (Type D)
Gyro scale factor nonlinearity: ≤100ppm (Type A) / ≤150ppm (Type B) / ≤150ppm (Type C) / ≤300ppm (Type D)
Accelerometer measurement range: ±10g
Accelerometer bias stability: 0.1mg
Accelerometer bias repeatability: 0.1mg
Accelerometer scale factor repeatability: ≤300ppm
Operating temperature: -40～+65℃
Storage temperature: -45～+70℃
Vibration: 20～2000,0.06Hz,g²/Hz
Shock: 30,11g,ms
Input voltage: +9～+36Vdc
Power consumption: 12W
Data output format: RS-422
Dimensions: ≤90×90×90mm
Weight: 1.0kg
Connector: J30J-15ZKP

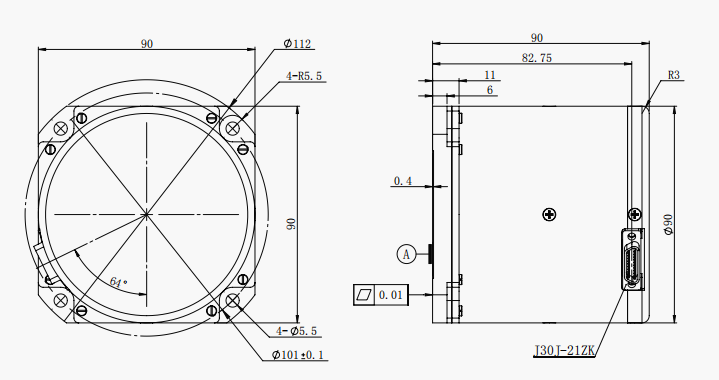

External Wiring
