UGTU400 series fiber optic gyroscope IMU

Features

Ultra-compact: 145mm×121.5mm×125mm;
Lightweight: 3kg;
Low power: 18W;
Medium precision: 0.3~1.0°/h;
Wide measurement range: ±1000°/s;
High reliability, long life;

Applications

Tactical missile guidance;
Antenna system stabilization;
Attitude/azimuth reference system;

UGTU400 series fiber optic gyroscope IMU

Overview

UGTU400 series fiber optic gyroscope IMU features ultra-compact design (145mm×121.5mm×125mm), lightweight (3kg), low power (18W), medium precision (0.3~1.0°/h), wide measurement range (±1000°/s), high reliability and long life, suitable for tactical missile guidance, antenna system stabilization, attitude/azimuth reference system and other applications.

Technical Parameters

Gyro measurement range: ±1000°/s
Gyro bias stability: 0.3°/h (Type A) / 0.5°/h (Type B) / 0.8°/h (Type C) / 1.0°/h (Type D)
Gyro bias repeatability: 0.3°/h (Type A) / 0.5°/h (Type B) / 0.8°/h (Type C) / 1.0°/h (Type D)
Gyro random walk coefficient: ≤0.03°/√h (Type A) / ≤0.05°/√h (Type B) / ≤0.08°/√h (Type C) / ≤0.1°/√h (Type D)
Gyro scale factor nonlinearity: ≤70ppm (Type A) / ≤100ppm (Type B) / ≤150ppm (Type C) / ≤300ppm (Type D)
Accelerometer measurement range: ±10g
Accelerometer bias stability: 0.07mg
Accelerometer bias repeatability: 0.07mg
Accelerometer scale factor repeatability: ≤300ppm
Operating temperature: -40～+65℃
Storage temperature: -45～+70℃
Vibration: 20～500,0.06Hz,g²/Hz
Shock: 30,11g,ms
Input voltage: +9～+36Vdc
Power consumption: 18W
Data output format: RS-422
Dimensions: ≤145×121.5×125mm
Weight: 3kg
Connector: Y11P-1210ZK10

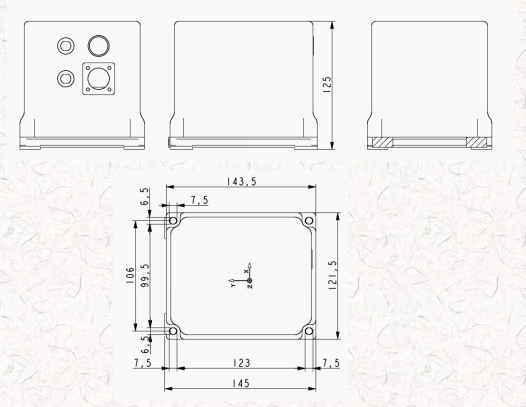

External Wiring
