UGTU300 series fiber optic gyroscope IMU

Features

Ultra-compact: Φ80mm×72mm;
Lightweight: 0.8kg;
Low power: 10W;
Medium precision: 0.5~3.0°/h;
Wide measurement range: ±1000°/s;
High reliability, long life;

Applications

Tactical missile guidance;
Antenna system stabilization;
Attitude/azimuth reference system;

UGTU300 series fiber optic gyroscope IMU

Overview

UGTU300 series fiber optic gyroscope IMU features ultra-compact design (Φ80mm×72mm), lightweight (0.8kg), low power (10W), medium precision (0.5~3.0°/h), wide measurement range (±1000°/s), high reliability and long life, suitable for tactical missile guidance, antenna system stabilization, attitude/azimuth reference system and other applications.

Technical Parameters

Gyro measurement range: ±1000°/s
Gyro bias stability: 0.5°/h (Type A) / 0.8°/h (Type B) / 1.0°/h (Type C) / 3.0°/h (Type D)
Gyro bias repeatability: 0.5°/h (Type A) / 0.8°/h (Type B) / 1.0°/h (Type C) / 3.0°/h (Type D)
Gyro random walk coefficient: ≤0.05°/√h (Type A) / ≤0.08°/√h (Type B) / ≤0.1°/√h (Type C) / ≤0.3°/√h (Type D)
Gyro scale factor nonlinearity: ≤150ppm (Type A) / ≤200ppm (Type B) / ≤300ppm (Type C) / ≤500ppm (Type D)
Accelerometer measurement range: ±10g
Accelerometer bias stability: 0.1mg
Accelerometer bias repeatability: 0.1mg
Accelerometer scale factor repeatability: ≤300ppm
Operating temperature: -40～+65℃
Storage temperature: -45～+70℃
Vibration: 20～500,0.06Hz,g²/Hz
Shock: 30,11g,ms
Input voltage: +9～+36Vdc
Power consumption: 12W
Data output format: RS-422
Dimensions: ≤Φ80×72mm
Weight: 0.8kg
Connector: J30J-15ZKP

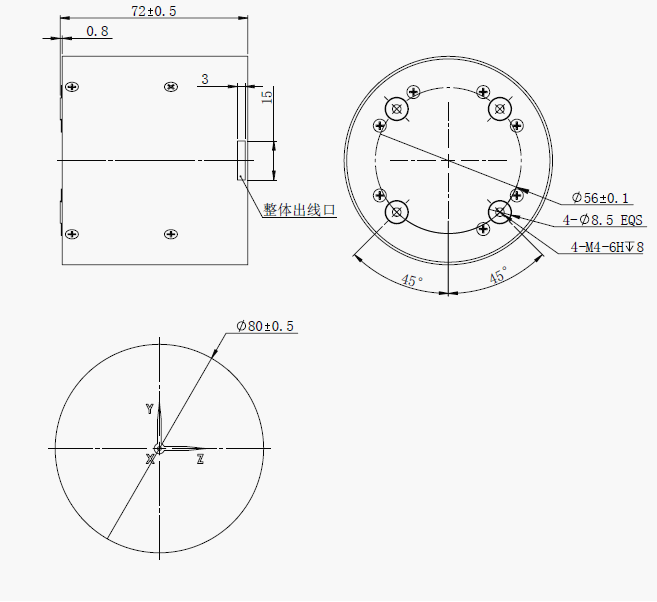

External Wiring
