UGTS500 series fiber optic GNSS/INS integrated navigation system

Features

Ultra-compact: 90mm×90mm×125mm;
Lightweight: 1.2kg;
Low power: 15W;
Wide measurement range: ±1000°/s;
High reliability, long life;

Applications

Tactical missile guidance;
Antenna system stabilization;
Space stable platform;
Attitude/azimuth reference system;
Multi-beam attitude sensing;
Railway track inspection vehicle;
UAV, unmanned surface vehicle navigation and control;

UGTS500 series fiber optic GNSS/INS integrated navigation system

Overview

UGTS500 series fiber optic GNSS/INS integrated navigation system features ultra-compact design (90mm×90mm×125mm), lightweight (1.2kg), low power (15W), wide measurement range (±1000°/s), high reliability and long life, suitable for tactical missile guidance, antenna system stabilization, space stable platform, attitude/azimuth reference system, multi-beam attitude sensing, railway track inspection vehicle, UAV/unmanned surface vehicle navigation and control and other applications.

Technical Parameters

North-seeking accuracy: ≤1.0°×Secant Latitude (Type A) / ≤1.8°×Secant Latitude (Type B) / ≤2.5°×Secant Latitude (Type C) / ≤5.0°×Secant Latitude (Type D)
Azimuth accuracy: ≤0.05°
Attitude accuracy: ≤0.05° (Type A/B) / ≤0.08° (Type C) / ≤0.1° (Type D)
Velocity accuracy: ≤0.03m/s
Position accuracy: ≤2m/RTK 2cm
GPS failure azimuth holding accuracy: ≤0.2°/1h (Type A) / ≤0.35°/1h (Type B) / ≤0.5°/1h (Type C) / ≤1.0°/1h (Type D)
GPS failure attitude holding accuracy: ≤0.05°/1h (Type A/B) / ≤0.08°/1h (Type C) / ≤0.1°/1h (Type D)
GPS failure position accuracy: ≤15km/0.5h (Type A) / ≤20km/0.5h (Type B) / ≤30km/0.5h (Type C) / ≤40km/0.5h (Type D)
Operating temperature: -40～+65℃
Storage temperature: -45～+70℃
Vibration: 20～500,0.06Hz,g²/Hz
Shock: 30,11g,ms
Input voltage: +9～+36Vdc
Power consumption: 15W
Data output format: RS-422
Data refresh rate: 100Hz
Dimensions: ≤90×90×125mm
Weight: 2.5kg
Connector: Y11P-1210ZK10

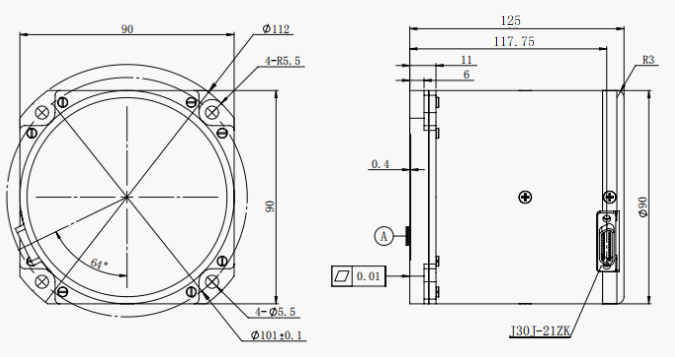

External Wiring
