UGTS300 series fiber optic GNSS/INS integrated navigation system

Features

Ultra-compact: Φ80mm×112mm;
Lightweight: 0.95kg;
Low power: 15W;
Wide measurement range: ±1000°/s;
High reliability, long life;
External satellite signal input;

Applications

Tactical missile guidance;
Antenna system stabilization;
Attitude/azimuth reference system;
Multi-beam attitude sensing;
Railway track inspection vehicle;
UAV, unmanned surface vehicle navigation and control;
Space stable platform;

UGTS300 series fiber optic GNSS/INS integrated navigation system

Overview

UGTS300 series fiber optic GNSS/INS integrated navigation system features ultra-compact design (Φ80mm×112mm), lightweight (0.95kg), low power (15W), wide measurement range (±1000°/s), external satellite signal input, high reliability and long life, suitable for tactical missile guidance, antenna system stabilization, attitude/azimuth reference system, multi-beam attitude sensing, railway track inspection vehicle, UAV/unmanned surface vehicle navigation and control, space stable platform and other applications.

Technical Parameters

North-seeking accuracy: ≤2.5°×Secant Latitude (Type A) / ≤4.0°×Secant Latitude (Type B) / ≤6.0°×Secant Latitude (Type C) / ≤10.0°×Secant Latitude (Type D)
Azimuth accuracy: ≤0.05°
Attitude accuracy: ≤0.05° (Type A/B) / ≤0.08° (Type C) / ≤0.1° (Type D)
Velocity accuracy: ≤0.03m/s
Position accuracy: ≤2m/RTK 2cm
GPS failure azimuth holding accuracy: ≤0.5°/1h (Type A) / ≤0.8°/1h (Type B) / ≤1.0°/1h (Type C) / ≤3.0°/1h (Type D)
GPS failure attitude holding accuracy: ≤0.03°/1h (Type A/B) / ≤0.08°/1h (Type C/D)
GPS failure position accuracy: ≤15km/0.5h (Type A) / ≤20km/0.5h (Type B) / ≤30km/0.5h (Type C) / ≤40km/0.5h (Type D)
Operating temperature: -40～+65℃
Storage temperature: -45～+70℃
Vibration: 20～500,0.06Hz,g²/Hz
Shock: 30,11g,ms
Input voltage: +9～+36Vdc
Power consumption: 15W
Data output format: RS-422
Data refresh rate: 100Hz
Dimensions: ≤Φ80×112mm
Weight: 0.95kg
Connector: J30J-15ZKP

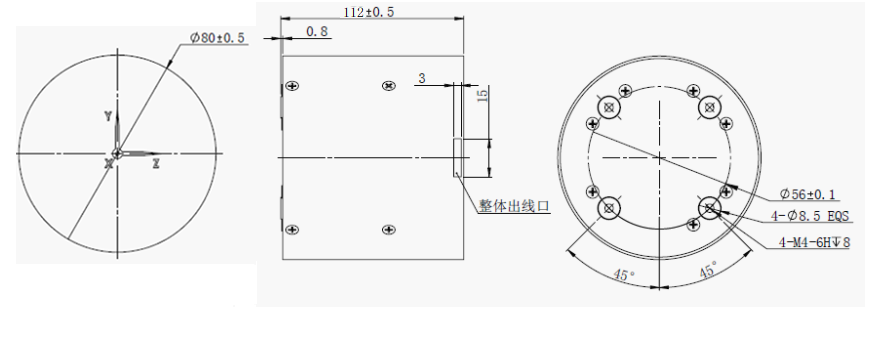

External Wiring
