UGTPT300 series three-axis fiber optic gyroscope

Features

Digital closed-loop mode;
Bias stability: 0.5~3.0°/h;
Compact size: Φ80mm×72mm;
Lightweight: ≤780g;

Applications

Small IMU, INS;
Servo tracking;
Seeker;

UGTPT300 series three-axis fiber optic gyroscope

Overview

UGTPT300 series three-axis fiber optic gyroscope adopts full digital closed-loop working mode with bias stability of 0.5~3.0°/h. It features compact size of Φ80mm×72mm and light weight ≤780g, suitable for small IMU, INS, servo tracking, seeker and other applications.

Technical Parameters

Measurement range: -1000～+1000°/s
Bias stability: ≤0.5°/h (Type A) / ≤0.8°/h (Type B) / ≤1.0°/h (Type C) / ≤3.0°/h (Type D)
Bias repeatability: ≤0.5°/h (Type A) / ≤0.8°/h (Type B) / ≤1.0°/h (Type C) / ≤3.0°/h (Type D)
Random walk coefficient: ≤0.05°/√h (Type A) / ≤0.08°/√h (Type B) / ≤0.1°/√h (Type C) / ≤0.3°/√h (Type D)
Scale factor nonlinearity: ≤150ppm (Type A) / ≤200ppm (Type B) / ≤300ppm (Type C) / ≤500ppm (Type D)
Scale factor repeatability: ≤150ppm (Type A) / ≤200ppm (Type B) / ≤300ppm (Type C) / ≤500ppm (Type D)
Scale factor asymmetry: ≤150ppm (Type A) / ≤200ppm (Type B) / ≤300ppm (Type C) / ≤50ppm (Type D)
Start-up time: ≤1s
Bandwidth: ＞200Hz
Power supply: -5,+5V
Power consumption: ≤10W
Operating temperature: -40～+65℃
Storage temperature: -55～+85℃
Vibration: 20～2000,0.06Hz,g²/Hz
Shock: 30,11g,ms
Data refresh rate: 200～2000Hz
Baud rate: 115200～921600bps
Output mode: Broadcast (default) / Trigger (custom)
Interface level: RS-422
Connector: J30J-15ZKP

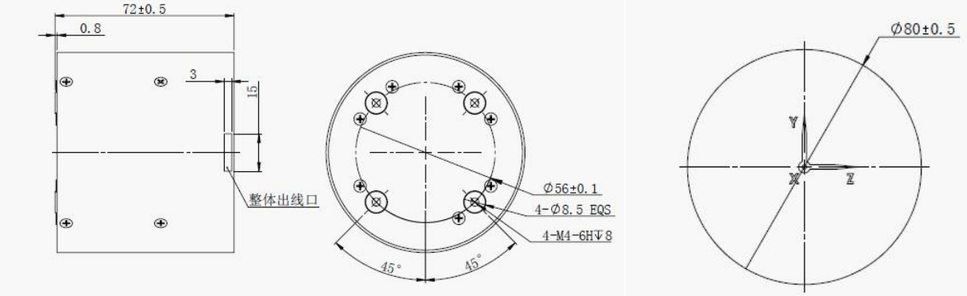

Dimensions: Φ80×72mm

External Wiring
