UGTPD300 series dual-axis fiber optic gyroscope

Features

Digital closed-loop mode;
Bias stability: 0.3~5.0°/h;
Compact size: 60mm×64mm×43mm;
Lightweight: ≤100g;
Dual horizontal axis and vertical horizontal axis options;

Applications

Small IMU, INS;
Servo tracking;
Seeker;

UGTPD300 series dual-axis fiber optic gyroscope

Overview

UGTPD300 series dual-axis fiber optic gyroscope adopts full digital closed-loop working mode with bias stability of 0.3~5.0°/h. It features compact size of 60mm×64mm×43mm and light weight ≤100g, available in dual horizontal axis and vertical horizontal axis configurations, suitable for small IMU, INS, servo tracking, seeker and other applications.

Technical Parameters

Measurement range: -1000～+1000°/s
Bias stability: ≤0.3°/h (Type A) / ≤0.5°/h (Type B) / ≤1.0°/h (Type C) / ≤5.0°/h (Type D)
Bias repeatability: ≤0.3°/h (Type A) / ≤0.5°/h (Type B) / ≤1.0°/h (Type C) / ≤5.0°/h (Type D)
Random walk coefficient: ≤0.03°/√h (Type A) / ≤0.05°/√h (Type B) / ≤0.1°/√h (Type C) / ≤0.5°/√h (Type D)
Scale factor nonlinearity: ≤50ppm (Type A) / ≤60ppm (Type B) / ≤70ppm (Type C) / ≤300ppm (Type D)
Scale factor repeatability: ≤50ppm (Type A) / ≤60ppm (Type B) / ≤70ppm (Type C) / ≤300ppm (Type D)
Scale factor asymmetry: ≤50ppm (Type A) / ≤60ppm (Type B) / ≤70ppm (Type C) / ≤30ppm (Type D)
Start-up time: ≤1s
Bandwidth: ＞200Hz
Power supply: -5,+5V
Power consumption: ≤6W
Operating temperature: -40～+65℃
Storage temperature: -55～+85℃
Vibration: 20～2000,0.06Hz,g²/Hz
Shock: 30,11g,ms
Data refresh rate: 200～2000Hz
Baud rate: 115200～921600bps
Output mode: Broadcast (default) / Trigger (custom)
Interface level: RS-422
Connector: J30J-15TJL

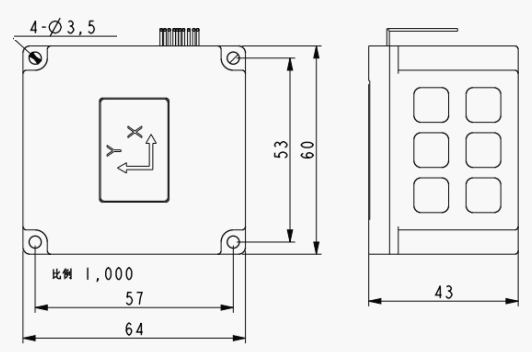

Dimensions: 60×64×43mm

External Wiring
