UGTP300 series fiber optic gyroscope

Features

Digital closed-loop mode;
Bias stability: 0.2~2.0°/h;
Compact size: Φ50mm×38mm;
Lightweight: ≤108g;

Applications

Small IMU, INS;
Seeker servo tracking;
Electro-optical pod;
UAV;

Overview

UGTP300 series fiber optic gyroscope adopts full digital closed-loop working mode with precision coverage of 0.2~2.0°/h. It features all-solid-state, long life, large dynamic range, high bandwidth, instant start-up, and no acceleration-induced drift. With compact size and light weight, it is suitable for small IMU, INS, seeker servo tracking, electro-optical pod, UAV and other applications.

Technical Parameters

Measurement range: -1000～+1000°/s
Bias stability: ≤0.2°/h (Type A) / ≤0.5°/h (Type B) / ≤1.0°/h (Type C) / ≤2.0°/h (Type D)
Bias repeatability: ≤0.2°/h (Type A) / ≤0.5°/h (Type B) / ≤1.0°/h (Type C) / ≤2.0°/h (Type D)
Random walk coefficient: ≤0.02°/√h (Type A) / ≤0.05°/√h (Type B) / ≤0.1°/√h (Type C) / ≤0.2°/√h (Type D)
Scale factor nonlinearity: ≤50ppm (Type A) / ≤80ppm (Type B) / ≤200ppm (Type C) / ≤200ppm (Type D)
Scale factor repeatability: ≤50ppm (Type A) / ≤80ppm (Type B) / ≤200ppm (Type C) / ≤200ppm (Type D)
Scale factor asymmetry: ≤50ppm (Type A) / ≤80ppm (Type B) / ≤200ppm (Type C) / ≤20ppm (Type D)
Start-up time: ≤1s
Bandwidth: ＞200Hz
Power supply: -5,+5V
Power consumption: ≤6W
Operating temperature: -40～+65℃
Storage temperature: -55～+85℃
Vibration: 20～2000,0.06Hz,g²/Hz
Shock: 30,11g,ms
Data refresh rate: 200～2000Hz
Baud rate: 115200～921600bps
Output mode: Broadcast (default) / Trigger (custom)
Interface level: RS-422
Connector: J30J-15TJL
Dimensions: Φ50×38mm

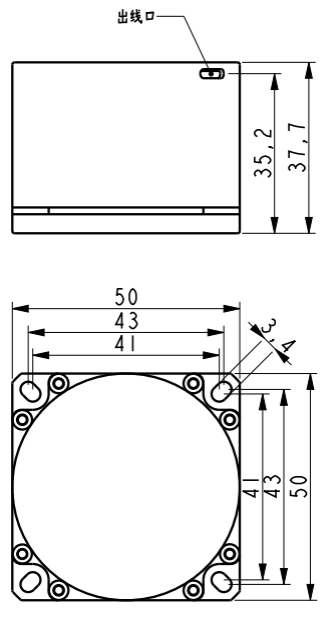

External Wiring
