UGTP1000 series fiber optic gyroscope

Features

Digital closed-loop mode;
Bias stability: 0.015~0.05°/h (10s smoothing);
Size: Φ98mm×35mm;
Weight: ≤518g;

Applications

Precision north-seeking;
High-precision inertial navigation system;
Vehicle positioning and orientation;

Overview

UGTP1000 series fiber optic gyroscope adopts full digital closed-loop working mode with bias stability of 0.015~0.05°/h (10s smoothing). It features compact size of Φ98mm×35mm and weight ≤518g, suitable for precision north-seeking, high-precision inertial navigation system, vehicle positioning and orientation and other applications.

Technical Parameters

Measurement range: -500~+500°/s
Bias stability (10s): ≤0.015°/h (Type A) / ≤0.02°/h (Type B) / ≤0.03°/h (Type C) / ≤0.05°/h (Type D)
Bias stability (100s): ≤0.007°/h (Type A) / ≤0.008°/h (Type B) / ≤0.01°/h (Type C) / ≤0.015°/h (Type D)
Bias repeatability: ≤0.008°/h (Type A) / ≤0.009°/h (Type B) / ≤0.01°/h (Type C) / ≤0.015°/h (Type D)
Random walk coefficient: ≤0.0015°/√h (Type A) / ≤0.002°/√h (Type B) / ≤0.003°/√h (Type C) / ≤0.005°/√h (Type D)
Scale factor nonlinearity: ≤20ppm (Type A) / ≤30ppm (Type B) / ≤40ppm (Type C) / ≤50ppm (Type D)
Scale factor repeatability: ≤20ppm (Type A) / ≤30ppm (Type B) / ≤40ppm (Type C) / ≤50ppm (Type D)
Scale factor asymmetry: ≤20ppm (Type A) / ≤30ppm (Type B) / ≤40ppm (Type C) / ≤60ppm (Type D)
Start-up time: ≤1s
Bandwidth: ＞200Hz
Power supply: -5,+5V
Power consumption: ≤6W
Operating temperature: -40~+65℃
Storage temperature: -55~+85℃
Vibration: 20~500,0.06Hz,g²/Hz
Shock: 30,11g,ms
Data refresh rate: 200~2000Hz
Baud rate: 115200~921600bps
Output mode: Broadcast (default) / Trigger (custom)
Interface level: RS-422
Connector: J30J-15TJL

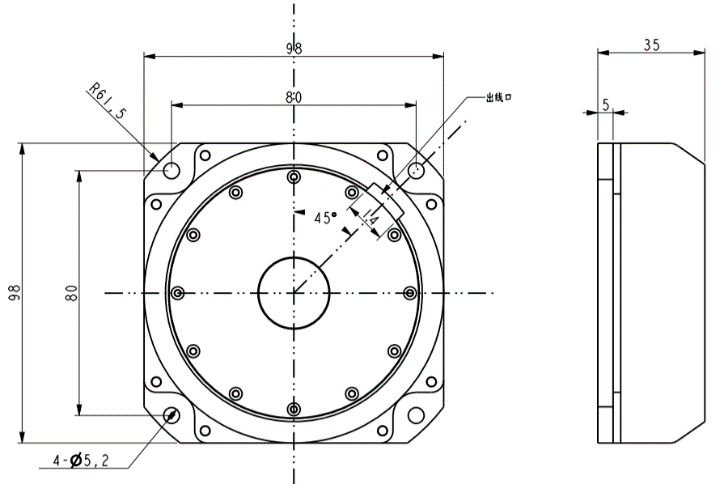

Dimensions: Φ98×35mm

External Wiring
