UGTMT200 series three-axis MEMS gyroscope

Features

Excellent gyro performance, can replace medium to low precision FOG;
Outstanding vibration and shock resistance;
High sampling rate, high bandwidth;
Unique data processing and filtering algorithms;

Applications

Antenna stabilization platform;
UAV flight control;
AGV vehicle navigation and control;
Attitude measurement and azimuth reference;
Automatic farming;
Container tracking;

UGTMT200 series three-axis MEMS gyroscope

Overview

UGTMT200 is a three-axis high-precision MEMS gyroscope with high reliability and stability, featuring measurement accuracy comparable to medium to low precision FOG products and excellent environmental characteristics of MEMS systems. It can replace medium to low precision FOG, with outstanding vibration and shock resistance, high sampling rate and high bandwidth, suitable for antenna stabilization platform, UAV flight control, AGV vehicle navigation and control, attitude measurement and azimuth reference and other applications.

Technical Parameters

Measurement range: -400～+400°/s
Bias stability: ≤3.0°/h (Type A) / ≤6.0°/h (Type B) / ≤10.0°/h (Type C) / ≤20.0°/h (Type D)
Bias repeatability: ≤3.0°/h (Type A) / ≤6.0°/h (Type B) / ≤10.0°/h (Type C) / ≤20.0°/h (Type D)
Random walk coefficient: ≤0.3°/√h (Type A) / ≤0.6°/√h (Type B) / ≤1.0°/√h (Type C) / ≤2.0°/√h (Type D)
Scale factor nonlinearity: ≤500ppm (Type A) / ≤600ppm (Type B) / ≤800ppm (Type C) / ≤1000ppm (Type D)
Start-up time: ≤1s
Bandwidth: ＞200Hz
Power supply: +9～+36Vdc
Power consumption: ≤3W
Operating temperature: -40～+60℃
Storage temperature: -55～+80℃
Vibration: 20～500,0.06Hz,g²/Hz
Shock: 30,11g,ms
Output mode: RS-422
Weight: ≤100g

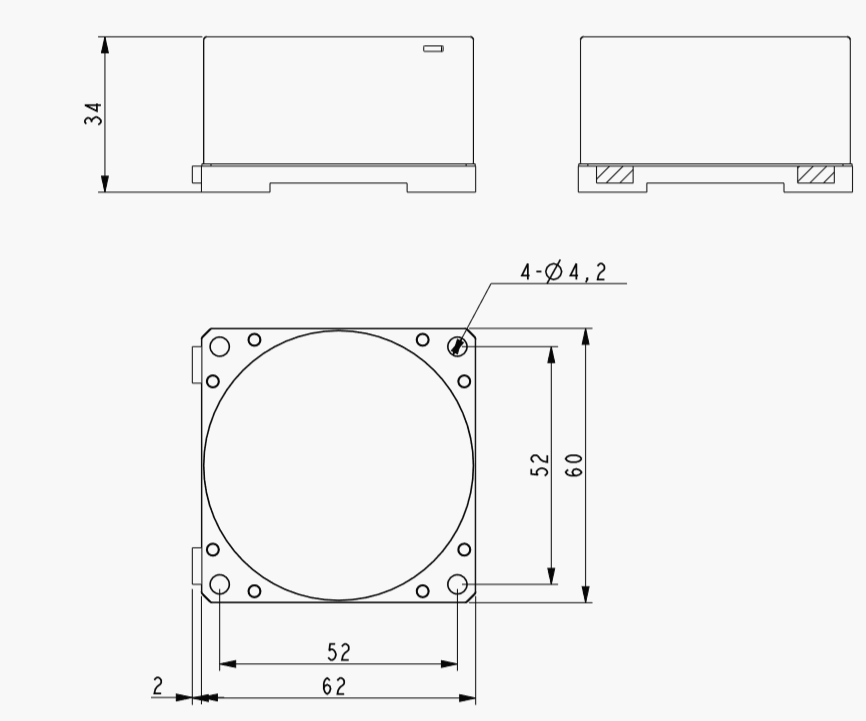

Dimensions: 60×62×34mm
Connector: J30J-15TJL

External Wiring
