UGTMF200 series fiber optic MEMS integrated inertial measurement system

Features

Excellent gyro performance, can replace medium to low precision FOG;
Outstanding vibration and shock resistance;
High sampling rate, high bandwidth;
Unique strapdown attitude algorithm and Kalman filter;

Applications

Antenna stabilization platform;
UAV flight control;
Aviation and platform stabilization control;
AGV vehicle navigation and control;
Vehicle navigation;
Attitude measurement and azimuth reference;
Automatic farming;
Container tracking;
Underwater ROV, AUV;

UGTMF200 series fiber optic MEMS integrated inertial measurement system

Overview

UGTMF200 is a miniaturized fiber optic MEMS tightly integrated differential measurement/autopilot system that provides horizontal attitude, azimuth and other attitude information. It can be customized to achieve automatic driving of the controlled carrier according to the required trajectory.

Technical Parameters

Heading accuracy (2m baseline): 0.1°
Satellite signal loss: 0.03°/5min (Type A) / 0.06°/5min (Type B) / 0.09°/5min (Type C) / 0.15°/5min (Type D)
Satellite signal loss (1h): 0.3°/1h (Type A) / 0.6°/1h (Type B) / 0.9°/1h (Type C) / 1.5°/1h (Type D)
Roll accuracy: ≤0.1° (Type A) / ≤0.2° (Type B) / ≤0.5° (Type C) / ≤0.8° (Type D)
Pitch accuracy: ≤0.1° (Type A) / ≤0.2° (Type B) / ≤0.5° (Type C) / ≤0.8° (Type D)
Velocity accuracy: 0.1m/s
Single point positioning accuracy: DGPS 0.5m/RTK 2cm
Orientation accuracy: 0.1° (2m baseline)
Azimuth measurement range: ±180°
Roll measurement range: ±90°
Pitch measurement range: ±90°
Angular velocity measurement range: ±300°/s
Acceleration measurement range: ±4g
Power supply: +9~+36Vdc, ≤8W@24Vdc
Electrical interface: RS422
Data update rate: 100Hz@115200bps
Operating temperature: -40℃~+60℃
Storage temperature: -55℃~+85℃
Dimensions: Φ89mm×118mm (customizable)
Weight: ≤810g
Connector: Y11P-1210ZK10

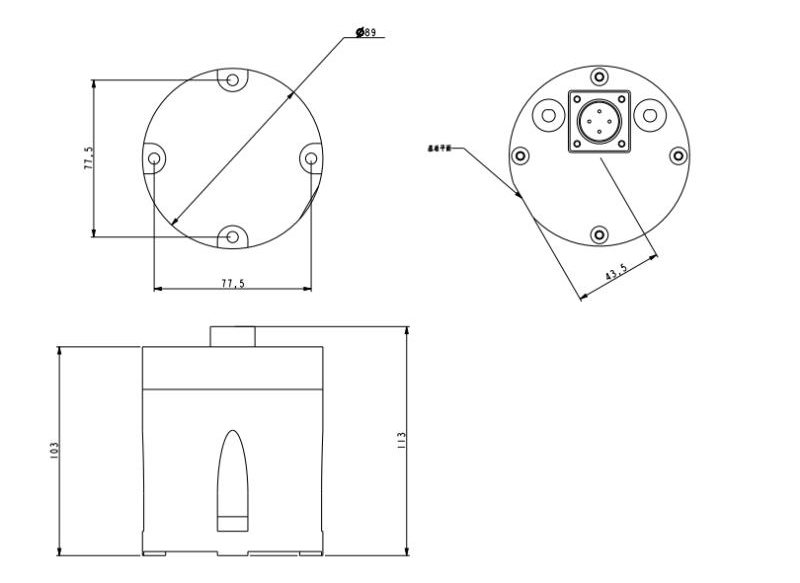

External Wiring
