UGTM300 series integrated MEMS inertial measurement system

Features

Excellent gyro performance, can replace medium to low precision FOG;
Outstanding vibration and shock resistance;
Unique strapdown attitude algorithm and Kalman filter;
High sampling rate, high bandwidth;
Tight coupling with high-precision GPS system;

Applications

Antenna stabilization platform;
UAV flight control;
AGV vehicle navigation and control;
Attitude measurement and azimuth reference;
Automatic farming;
Container tracking;

UGTM300 series integrated MEMS inertial measurement system

Overview

UGTM300 is a high-precision MEMS sensor with high reliability and stability, featuring measurement accuracy comparable to medium to low precision FOG products and excellent environmental characteristics of MEMS systems. It achieves tight coupling with high-precision GPS systems to provide high-precision azimuth and attitude information.

Technical Parameters

Heading accuracy (2m baseline): 0.1°
Satellite signal loss: 0.5°/5min (Type A) / 1.0°/5min (Type B) / 3.0°/5min (Type C) / 5.0°/5min (Type D)
Roll accuracy: ≤0.1° (Type A) / ≤0.2° (Type B) / ≤0.3° (Type C) / ≤0.5° (Type D)
Pitch accuracy: ≤0.1° (Type A) / ≤0.2° (Type B) / ≤0.3° (Type C) / ≤0.5° (Type D)
Velocity accuracy: 0.1m/s
Single point positioning accuracy: DGPS 0.5m / RTK 2cm
Azimuth measurement range: ±180°
Roll measurement range: ±90°
Pitch measurement range: ±90°
Angular velocity measurement range: ±300°/s
Acceleration measurement range: ±4g
Power supply: +9～+36Vdc, ≤3W@24Vdc
Electrical interface: RS422
Data update rate: 100Hz@115200bps
Operating temperature: -40℃～+60℃
Storage temperature: -55℃～+85℃

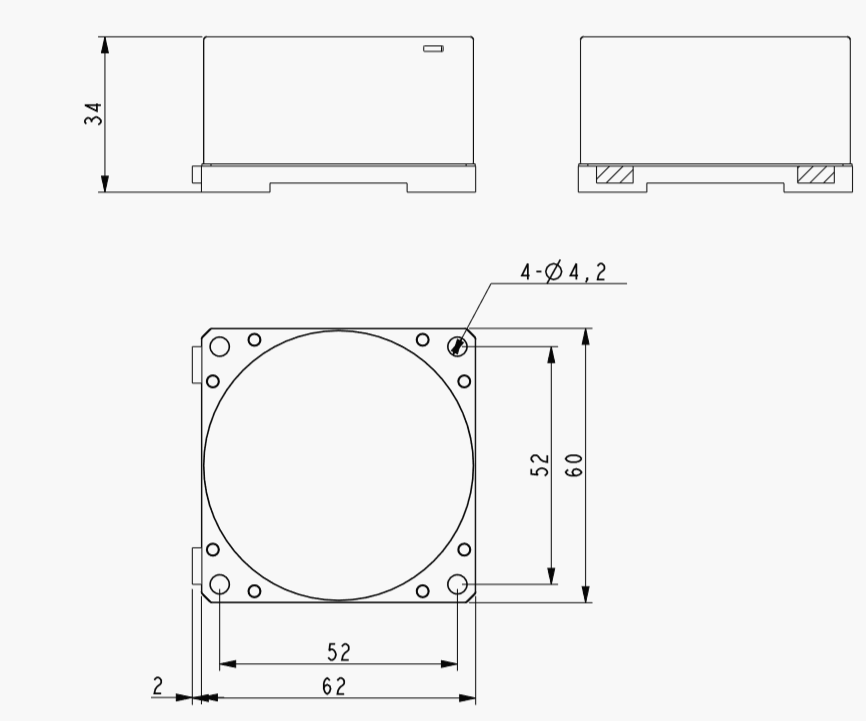

Dimensions: 60×62×34mm
Weight: ≤117g
Connector: J30J-15ZKP

External Wiring
