UGTM200 series MEMS inertial measurement unit

Features

Excellent gyro performance, can replace medium to low precision FOG;
Outstanding vibration and shock resistance;
Unique strapdown attitude algorithm and Kalman filter;
High sampling rate, high bandwidth;

Applications

Antenna stabilization platform;
UAV flight control;
AGV vehicle navigation and control;
Attitude measurement and azimuth reference;
Automatic farming;
Container tracking;

UGTM200 series MEMS inertial measurement unit

Overview

UGTM200 is a high-precision MEMS sensor with high reliability and stability, featuring measurement accuracy comparable to medium to low precision FOG products and excellent environmental characteristics of MEMS systems. It integrates three-axis gyroscopes and three-axis accelerometers, providing a complete inertial measurement solution.

Technical Parameters

Gyro measurement range: -400～+400°/s
Gyro bias stability: ≤3.0°/h (Type A) / ≤6.0°/h (Type B) / ≤10.0°/h (Type C) / ≤20.0°/h (Type D)
Gyro bias repeatability: ≤3.0°/h (Type A) / ≤6.0°/h (Type B) / ≤10.0°/h (Type C) / ≤20.0°/h (Type D)
Gyro random walk coefficient: ≤0.3°/√h (Type A) / ≤0.6°/√h (Type B) / ≤1.0°/√h (Type C) / ≤2.0°/√h (Type D)
Gyro scale factor nonlinearity: ≤500ppm (Type A) / ≤600ppm (Type B) / ≤800ppm (Type C) / ≤1000ppm (Type D)
Accelerometer measurement range: ±10g
Accelerometer bias stability: 5mg (Type A) / 10mg (Type B/C/D)
Accelerometer bias repeatability: 5mg (Type A) / 10mg (Type B/C/D)
Accelerometer scale factor repeatability: ≤500ppm (Type A/B) / ≤1000ppm (Type C/D)
Operating temperature: -40~+60℃
Storage temperature: -55~+80℃
Vibration: 20~500,0.06Hz,g²/Hz
Shock: 30,11g,ms
Input voltage: +9~+36Vdc
Power consumption: 3W
Data output format: RS-422
Dimensions: 60×62×34mm
Weight: ≤100g
Connector: J30J-15ZKP

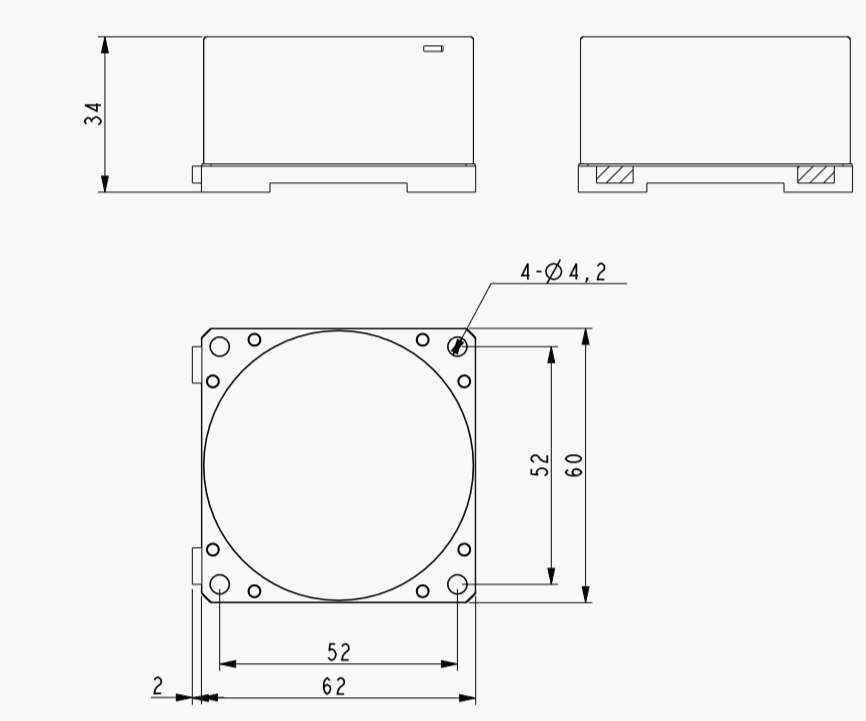

External Wiring
