Series universal displacement sensor / UGA-750

Features
  • Spring-loaded probe;
  • Welded 3/4-inch sealed steel housing;
  • Measurement range from ±0.05 to ±2 inches;
  • Linearity ±0.15% of typical full scale;
  • Shock and vibration resistant;
  • Wide operating temperature range -55℃ to 135℃;
  • Choice of probe contact tips;
Applications
  • Dimensional measurement;
  • Packaging equipment;
  • Factory automation;
  • Material testing;
  • Automotive testing;
Series universal displacement sensor / UGA-750
Series universal displacement sensor / UGA-750


Overview
The UGA-750 series sensor probe is a spring-loaded AC LVDT with good linearity, high sensitivity, and infinite resolution. The structure consists of a stainless steel probe assembly and a sealed housing. The winding is encapsulated within the housing, providing excellent protection against impact and vibration in harsh environments.
Technical Parameters
  • Input voltage: 3Vrms (nominal)
  • Input frequency: 400Hz to 10KHz
  • Linearity: <±0.15% of full range typical
  • Expanded operating range: 1.5 X linear range
  • Null voltage: 0.5% of full range
  • Hysteresis: <0.01% of typical full range
  • Repeatability: <0.01% of typical full range
  • Operating temperature: -55℃ to 135℃
  • Thermal coefficient: <-0.02%/℃ full range
  • Humidity: 90% RH, 240 hours
  • Shock: 1000g, 11ms
  • Vibration: 20g to 2KHz
  • Housing: Corrosion-resistant nickel-iron alloy
  • Core: High permeability nickel-iron alloy
  • Magnet wire: Film insulated copper
  • Connector: PT02A-10-6P
  • Probe: AGD #9 tip

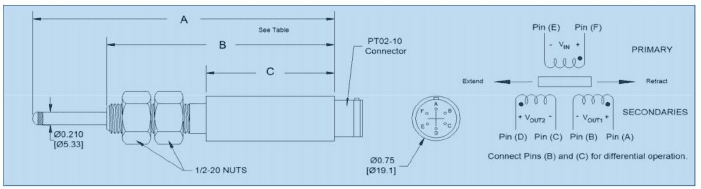

External Wiring

UGA-750 series universal displacement sensor
